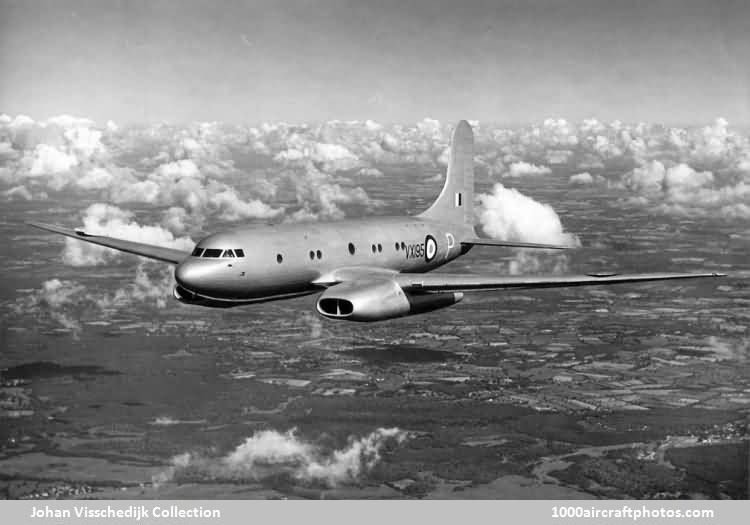

No. 6363. Avro 688 Tudor Mk.8 (VX195 c/n 1249) Ministry of Supply
Photographs from Military Aircraft Photographs (MAP) and Avro

Avro 688 Tudor Mk.8

Main menu

Larger image
Another view

Next Visschedijk photo
Visschedijk menu

This aircraft was originally the second prototype Mk.1 and was registered
G-AGST to the MoS&AP. Subsequently it was modified to a Mk.4 by a 5 ft 9 in (1.75 m) stretch of the fuselage and fitting the 1,760 hp Rolls-Royce Merlin Mk.623 liquid-cooled twelve-cylinder V-engines.

The aircraft was transferred to the MoS and converted to the sole Mk.8, serialed VX195. The Merlin negines were replaced by four 5.000 lb (2.268 kg) s.t Roll-Royce Nene Mk.5 engines in paired nacelles under the wings. In this configuration it was flown for the first time on September 6, 1948 and used for high-altitude investigations. Withdrawn from use it was broken up at Farnborough in 1951.
